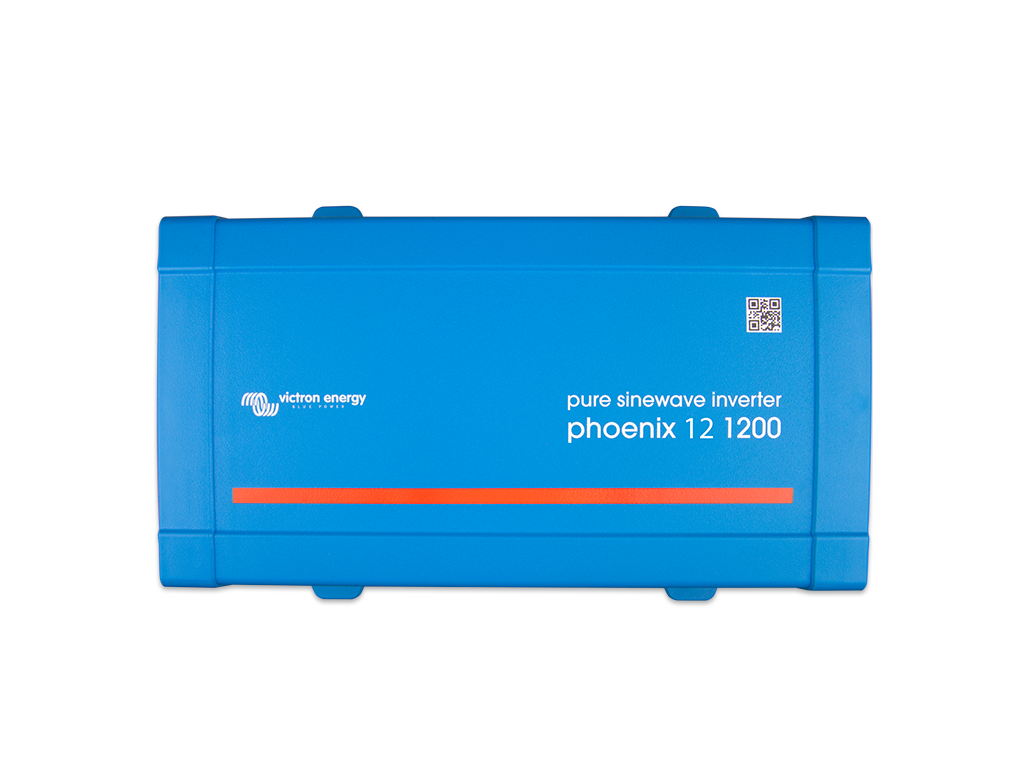

VICTRON PHOENIX INVERTER VE.Direct 12/1200

Item Description:

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V

Image for illustrative purposes only, actual product may differ.

Technical:

• Cont. power at 25°C: 1200VA
• Cont. power at 25°C/40°C: 1000/850W
• Peak power: 2200W
• Output AC voltage/frequency (adjustable): 230VAC or 120VAC +/- 3%  50Hz or 60Hz +/- 0.1%
• Input voltage range: 9.2 - 17V
• DC low shut down (adjustable): 9.3V
• Dynamic (load dependent) DC low shut down (fully configurable): Dynamic cut-off
• DC low restart and alarm (adjustable): 10.9V
• Battery charged detect (adjustable): 14.0V
• Max. efficiency: 91%
• Zero-load power: 7W
• Default zero-load power in ECO mode (default retry interval: 2.5s, adjustable): 1W
• ECO mode stop and start power setting: Adjustable
• Protection: a-f
• Operating temperature range: -40°C to +65°C (fan assisted cooling) Derate 1.25% per °C above 40°C
• Humidity (non-condensing): max 95%

Enclosure:

• Material and Colour: Steel chassis and plastic cover (blue Ral 5012)
• Battery-connection: Screw terminals
• Maximum cable cross-section: 35mm2 / AWG2
• Standard AC outlets: 230V Schuko (CEE 7/4), IEC-320 (male plug included), UK(BS 1363), AU/NZ (AS/NZS3112)
• Protection category: IP21
• Weight: 7.4kg
• Dimensions (h x w x d, mm): 117x232x362mm

Accessories:

• Remote on-off: Yes
• Automatic transfer switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL458(model dependent)
• EMC:  EN 55014-1 / EN55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive: ECE R10-4

Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
