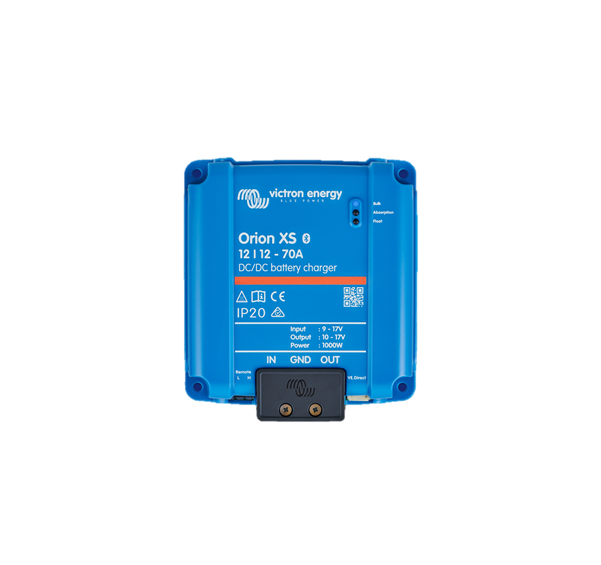

VICTRON ORION XS 12I12 - 70A DC DC Charger

Victron Orion XS 12/12-70A DC-DC Charger

The Orion XS is Victron's most powerful 12V DC-DC charger, built to keep your service battery fully charged from a smart alternator — even on Euro 5/6 vehicles that often supply unreliable charging voltage. With adjustable current up to 70A and a fully adaptive 4-stage charge algorithm, it delivers fast, controlled charging while protecting your starter battery from overload.

Monitor and configure everything via Bluetooth and the VictronConnect app, or integrate into a full Victron system through the VE.Direct port for GX device and DVCC control.

Key Specs:

• Max charge current: up to 70A (adjustable in 0.1A steps)
• Continuous output: up to 1000W
• Input voltage range: 9–17V
• Output voltage range: 10–17V
• Efficiency: up to 98.5%
• Charging: adaptive 4-stage (Bulk – Absorption – Float – Storage), 8 pre-programmed battery profiles
• Connectivity: Bluetooth (VictronConnect), VE.Direct port, VE.Smart Networking, DVCC-compatible
• Protection: overload, short circuit, over-temperature, input undervoltage lock-out, low-temp shutdown
• Enclosure: IP20 overall (external cooling fan), IP65-rated internal electronics
• Cooling: dual integrated blower fans, low-noise operation
• Compatible batteries: lithium & lead-acid
• Ideal for: RVs, boats, 4x4s & off-grid dual battery systems

Warranty:

• 5-year standard Victron manufacturer warranty, from date of purchase
• Extendable to 10 years for a 10% surcharge on the product price
