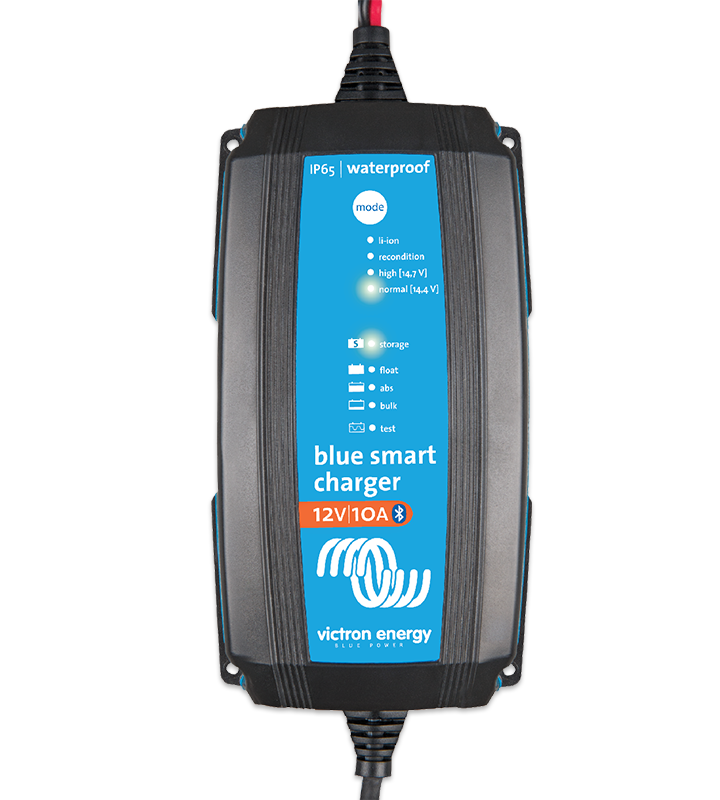

Victron Blue Smart IP65 Charger (230V) IP65 12/10 +DC CONNECTOR

Other features of the Blue Smart IP65 Charger

• Setup and configure, readout of voltage and current by Bluetooth Smart.
• Water, dust and chemical resistant.
• Seven step smart charge algorithm.
• Recovery of fully discharged ‘dead’ batteries.
• Automatic power supply function.
• Automatic compensation for high or low temperature.
• Several other battery life enhancing features.
• Low power mode to charge smaller batteries.
• Li-ion battery mode.
• Setup and configure, readout of voltage and current by Bluetooth Smart (with VictronConnect app).

Included

• Connect clamps.
• M8 eyelet connectors.

Technical Specifications

• Input voltage range: 180-265 VAC.
• Efficiency: 94%.
• Standby power consumption: 0,5 W.
• Charge voltage 'absorption': Normal: 14,4 V, High: 14,7 V, Li-ion: 14,2 V.
• Charge voltage 'float': Normal: 13,8 V, High: 13,8 V, Li-ion: 13,5 V.
• Charge voltage 'storage': Normal: 13,2 V, High: 13,2 V, Li-ion: 13,5 V.
• Charge current 10A.
• Low current mode: 3A.
• Temperature compensation (lead-acid batteries only): 16 mV/ºC.
• Can be used as power supply: Yes.
• Back current drain: 0,7 Ah/month (1 mA).
• Protection: Reverse polarity, Output short circuit, Over temperature.
• Operating temp. range: -30 to +50°C (full rated output up to 30°C) (cables retain flexibility at low temperature).
• Humidity (non-condensing): Max 95%.

Enclosure

• Battery-connection: Black and red cable of 1,5 meter with 20 A DC connector, clamps and M8 eyelets.
• 230 V AC-connection: Cable of 1,5 meter with CEE 7/17, BS 1363 plug (UK) or AS/NZS 3112 plug.
• Protection category: IP65 (splash and dust proof).
• Weight: 0,9 kg.
• Dimensions (h x w x d): 60x105x190mm.

Standard

• Safety: EN 60335-1, EN 60335-2-29.
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2.
• Immunity: EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3.
