VICTRON ORION-TR SMART DC-DC CHARGER ISOLATED 12/12-18

VICTRON ORION-TR SMART DC-DC CHARGER ISOLATED 12/12-18

R 2,699.00
R 2,699.00
Sale Sold out
Shipping calculated at checkout.

Item Description:

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

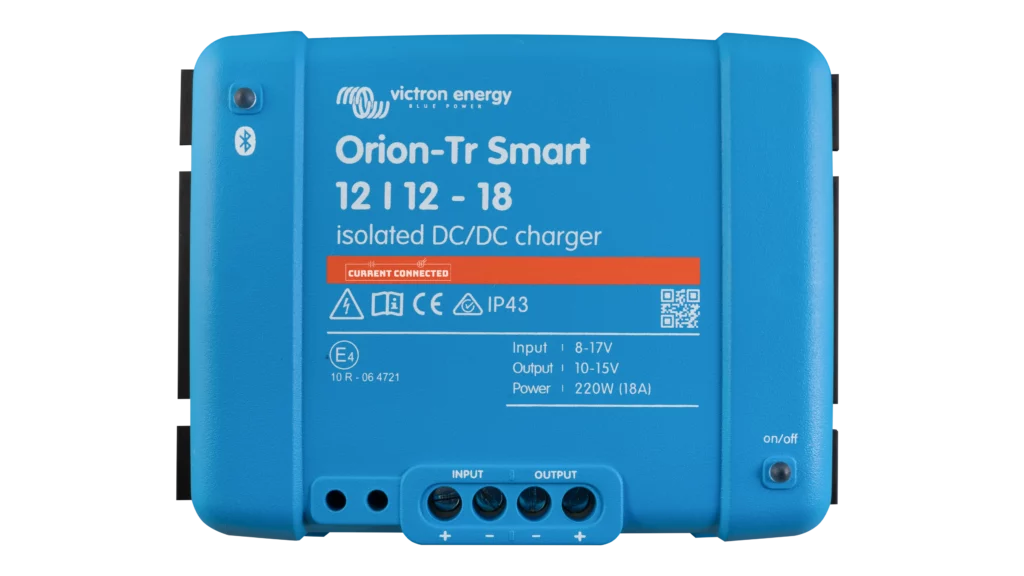

Image for illustrative purposes only, actual product may differ.

    Technical Specifications

    • Input voltage range: 8-17V
    • Under voltage shutdown: 7V
    • Under voltage restart: 7.5V
    • Nominal output voltage:: 12.2V
    • Output voltage adjust range: 10-15V
    • Output voltage tolerance: +/-0.2V
    • Output noise: 2mV rms
    • Cont. output current at nominal output voltage and 40°C: 18A
    • Maximum output current (10s) at nominal output voltage minus 20%: 25A
    • Short circuit output current: 40A
    • Cont. output power at 25°C: 280W
    • Cont. output power at 40°C: 220W
    • Efficiency: 87%
    • No load input current: <80mA
    • Standby current: Less than 1mA
    • Galvanic isolation: 200VDC between input, output and case
    • Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
    • Humidity: Max. 95% non-condensing
    • DC connection: Screw terminals
    • Maximum cable cross-section: 16mm2 AWG6
    • Weight: 1.3kg (3lb)
    • Dimensions hxwxd: 130x186x70mm
    • Protection category: IP43 (electronic components), IP22 (connection area)

    Standard

    • Safety: EN60950
    • Emission: EN61000-6-3, EN55014-1
    • Immunity: EN61000-6-2, EN61000-6-1, EN55014-2
    • Automotive Directive: ECE R10-5

    Important:

    All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

    OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
