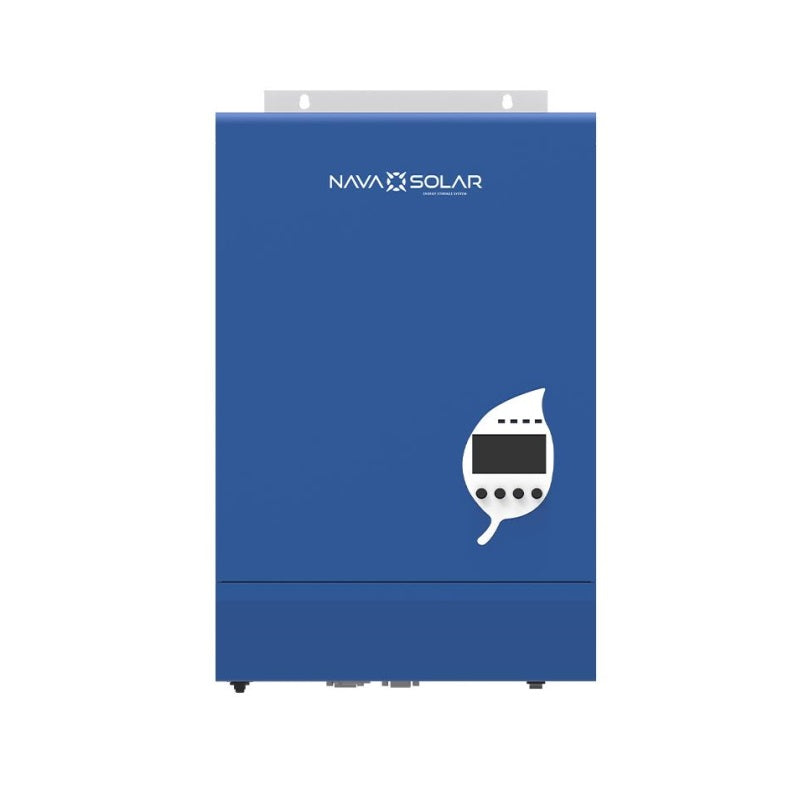

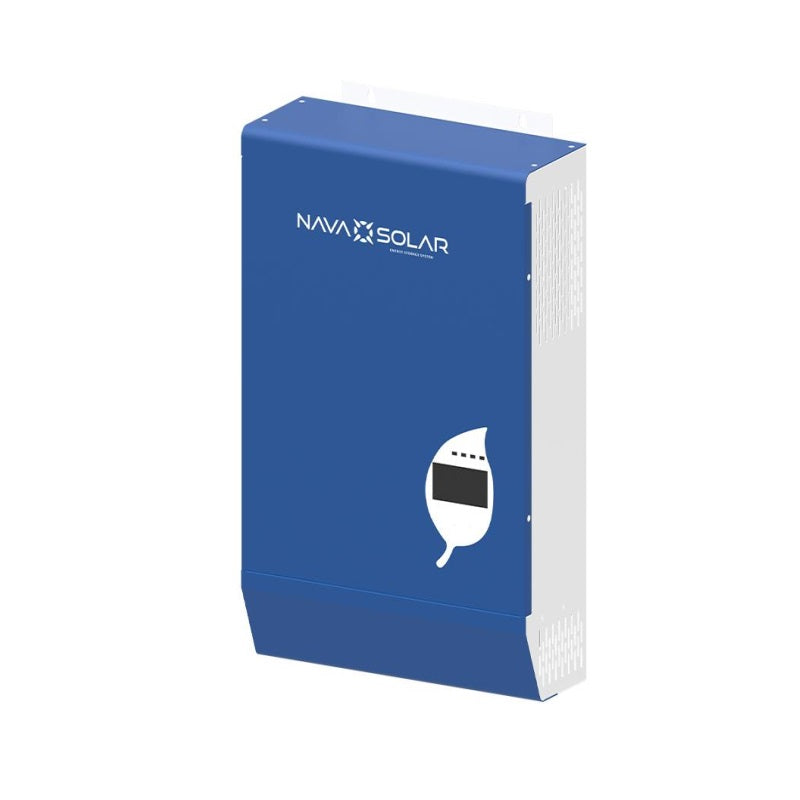

NAVASOLAR X5048 5KW 48V OFFGRID SOLAR INVERTER WITH 80A MPPT

NAVASOLAR X5048 5KW 48V OFFGRID SOLAR INVERTER WITH 80A MPPT

R 12,999.00
R 12,999.00
Sale Sold out
Shipping calculated at checkout.

Item Description:

NavaSolar Off-grid Solar Inverter - X Series 48v

FEATURES:

  • Pure Sine Wave solar inverter
  • Output power factor up to 1.0
  • Compatible to AC mains or generator inputs
  • Considerable PV input types
  • Build-in smart solar charger (PWM/MPPT)
  • Battery independent design(5kW)
  • Auto restart while AC is recovering
  • Configurable AC/Solar input priority via LCD setting
  • Selectable input voltage range for home appliances and personal computer loads

SPECIFICATIONS:

Nominal Battery System Voltage
48VDC
Parallel Capability
Yes, up to 9 units
Operation Without Battery
Yes


INVERTER OUTPUT
Rated Power 5000W
Surge Power 10000W
AC Voltage Regulation(Batt.Mode) (220VAC~240VAC) ±5%
lnverter Efficiency(Peak) 94%
Transfer Time 10ms(typical)

AC INPUT
Voltage 208/220/230/240VAC
Selectable Voltage Range 170~280Vac(for personal Computer)
170~280Vac(for personal Computer)
Frequency Range 50Hz/60Hz(Auto sensing)

BATTERY
Normal Voltage 48VDC
Floating Charge Voltage 54.8VDC
Overcharge Protection 60VDC

SOLAR CHARGER AND AC CHARGER
Maximum PV Array Open Circuit Voltage 450VDC
PV Array Voltage Range 450VDC
Maximum PV lnput Power 5500W
Maximum Solar Charge Current 80A
Maximum Efficiency 98%
Maximum AC Charge Current 80A
Maximum Charge Current 80A



Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
