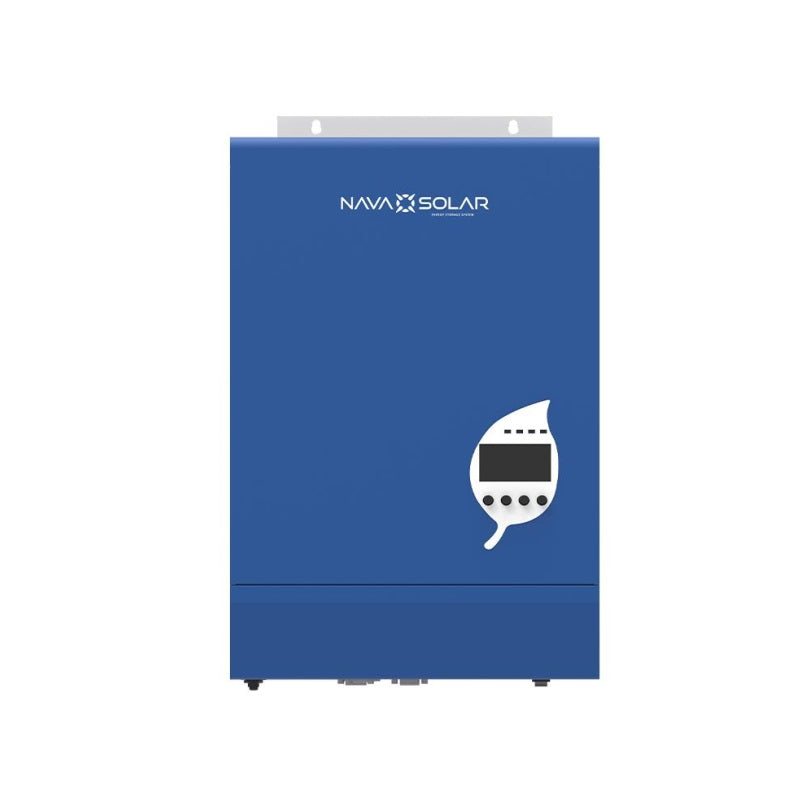

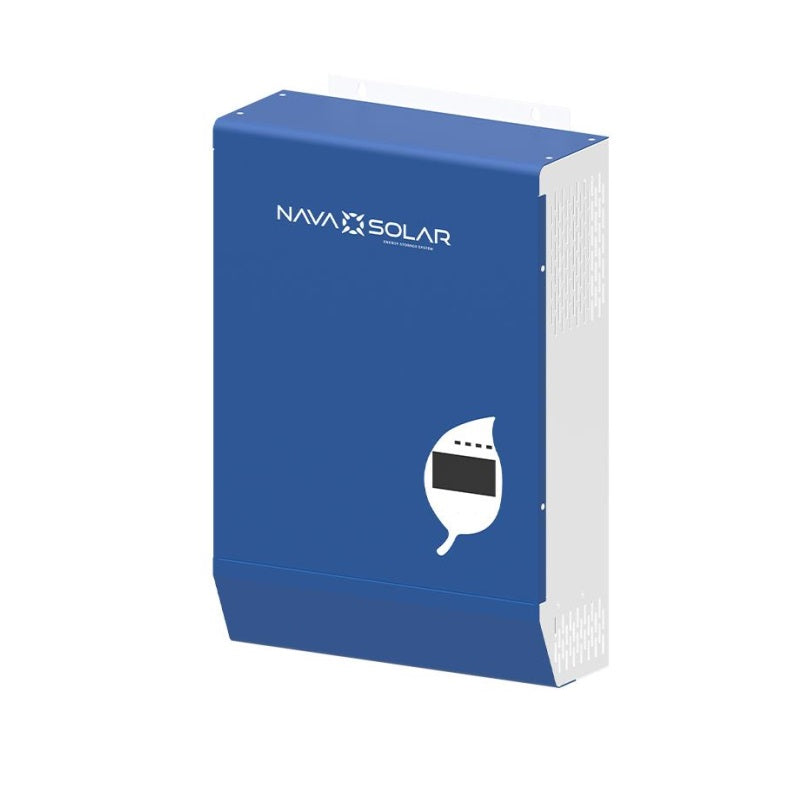

NAVASOLAR X3024 3KW 24V OFFGRID SOLAR INVERTER WITH 60A MPPT

NAVASOLAR X3024 3KW 24V OFFGRID SOLAR INVERTER WITH 60A MPPT

R 6,750.00
R 6,750.00
Sale Sold out
Shipping calculated at checkout.

Item Description:

NavaSolar Off-grid Solar Inverter - X Series 24v

FEATURES:

  • Pure sine wave solar inverter
  • Output power factor up to 1.0
  • Compatible to AC mains or generator inputs
  • Considerable PV input types
  • Build-in smart solar charger (PWM/MPPT)
  • Battery independent design(5kW)
  • Auto restart while AC is recovering
  • Configurable AC/Solar input priority via LCD setting
  • Selectable input voltage range for home appliances and personal computer loads

SPECIFICATIONS:

Nominal Battery System Voltage
24VDC
Parallel Capability
No
Operation Without Battery
No


INVERTER OUTPUT
Rated Power 3000W
Surge Power 6000W
Wave Form Pure Sine Wave
AC Voltage Regulation(Batt.Mode) (220VAC~240VAC) ±5%
lnverter Efficiency(Peak) 93.5%
Transfer Time 10ms(typical)

AC INPUT
Voltage 208/220/230/240VAC
Selectable Voltage Range 170~280Vac(for personal Computer)
170~280Vac(for personal Computer)
Frequency Range 50Hz/60Hz(Auto sensing)
BATTERY

Normal Voltage 48VDC
Floating Charge Voltage 54.8VDC
Overcharge Protection 60VDC

SOLAR CHARGER AND AC CHARGER
Maximum PV Array Open Circuit Voltage 145VDC
PV Array Voltage Range MPPT 30~115VDC
Maximum PV lnput Power 1500W
Maximum Solar Charge Current 60A
Maximum Efficiency 98%
Maximum AC Charge Current 60A

Maximum Charge Current

 120A



Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
