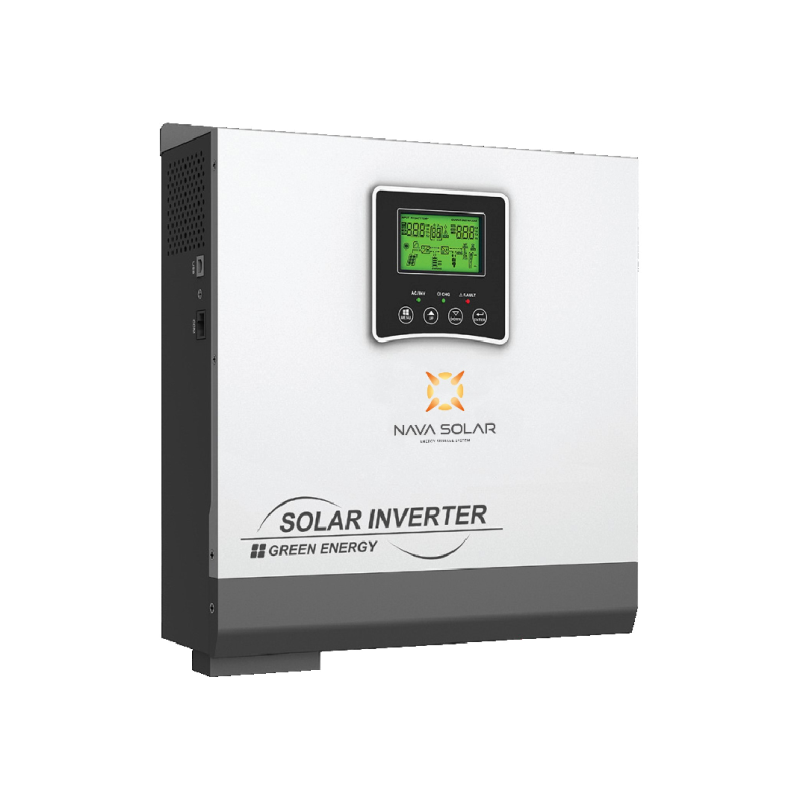

NAVASOLAR PV1800 VPM 3KW 24V OFFGRID SOLAR INVERTER WITH 60A MPPT

NAVASOLAR PV1800 VPM 3KW 24V OFFGRID SOLAR INVERTER WITH 60A MPPT

R 6,318.00
R 6,318.00
Sale Sold out
Shipping calculated at checkout.

Item Description:

NavaSolar Off-grid Solar Inverter - M Series 24v

FEATURES:

  • Pure sine wave output
  • Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
  • Built-in MPPT solar charge controller
  • MAX PV Array Open Circuit Voltage: 450V
  • Can provide the power to the load without battery
  • Combining solar system, AC utility, and battery power source to supply continuous power
  • Overload, short circuit and Deep discharge protection
  • Cold start function
  • Support USB, RS485 monitoring function
  • WIFI remote monitoring



SPECIFICATIONS:

Nominal Battery System Voltage
24VDC
Parallel Capability
No
Operation Without Battery
No



INVERTER OUTPUT
Rated Power 3000W
Surge Power 6000W
AC Voltage Regulation(Batt.Mode) (230VAC) ±5%
Wave Form Pure Sine Wave
lnverter Efficiency(Peak) 93%
Transfer Time 10ms(typical)

AC INPUT
Voltage 230VAC ±5%
Selectable Voltage Range 170~280VAC(for Personal Computer)
184~253VAC(VED4105)
Frequency Range 50Hz/60Hz(Auto sensing)

BATTERY
Normal Voltage 24VDC
Floating Charge Voltage 27.4VDC
Overcharge Protection 30VDC

SOLAR CHARGER AND AC CHARGER
Maximum PV Array Open Circuit Voltage 145VDC
PV Array Voltage Range MPPT 30~120VDC
Maximum PV lnput Power 1500W
Maximum Solar Charge Current 60A
Maximum Efficiency 98%
Maximum AC Charge Current 30A
Maximum Charge Current 80A
