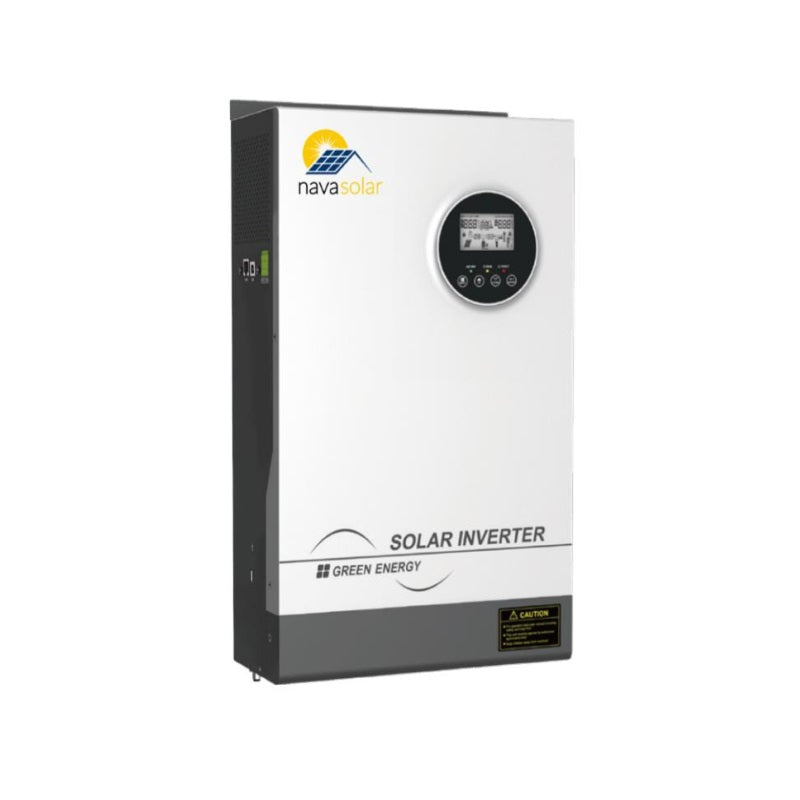

NAVASOLAR PV1800 PRO 5.2KW 48V OFFGRID SOLAR INVERTER WITH 80A MPPT
NAVASOLAR PV1800 PRO 5.2KW 48V OFFGRID SOLAR INVERTER WITH 80A MPPT
Regular price
R 12,212.00
Regular price
Sale price
R 12,212.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Item Description:
NavaSolar Off-grid Solar Inverter - M Series 48v
FEATURES:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring
SPECIFICATIONS:
| Nominal Battery System Voltage |
48VDC
|
| Parallel Capability |
Yes, up to 3 units
|
| Operation Without Battery |
Yes
|
|
|
|
|
INVERTER OUTPUT |
|
| Rated Power | 5200W |
| Surge Power | 10400W |
| AC Voltage Regulation(Batt.Mode) | (230VAC) ±5% |
| Wave Form | Pure Sine Wave |
| lnverter Efficiency(Peak) | 93% |
| Transfer Time | 10ms(typical) |
| AC INPUT | |
| Voltage | 230VAC ±5% |
| Selectable Voltage Range | 170~280VAC(for Personal Computer) |
| 184~253VAC(VED4105) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| BATTERY | |
| Normal Voltage | 48VDC |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER AND AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| PV Array Voltage Range | MPPT 150~430VDC |
| Maximum PV lnput Power | 5000W |
| Maximum Solar Charge Current | 80A |
| Maximum Efficiency | 98% |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 80A |
