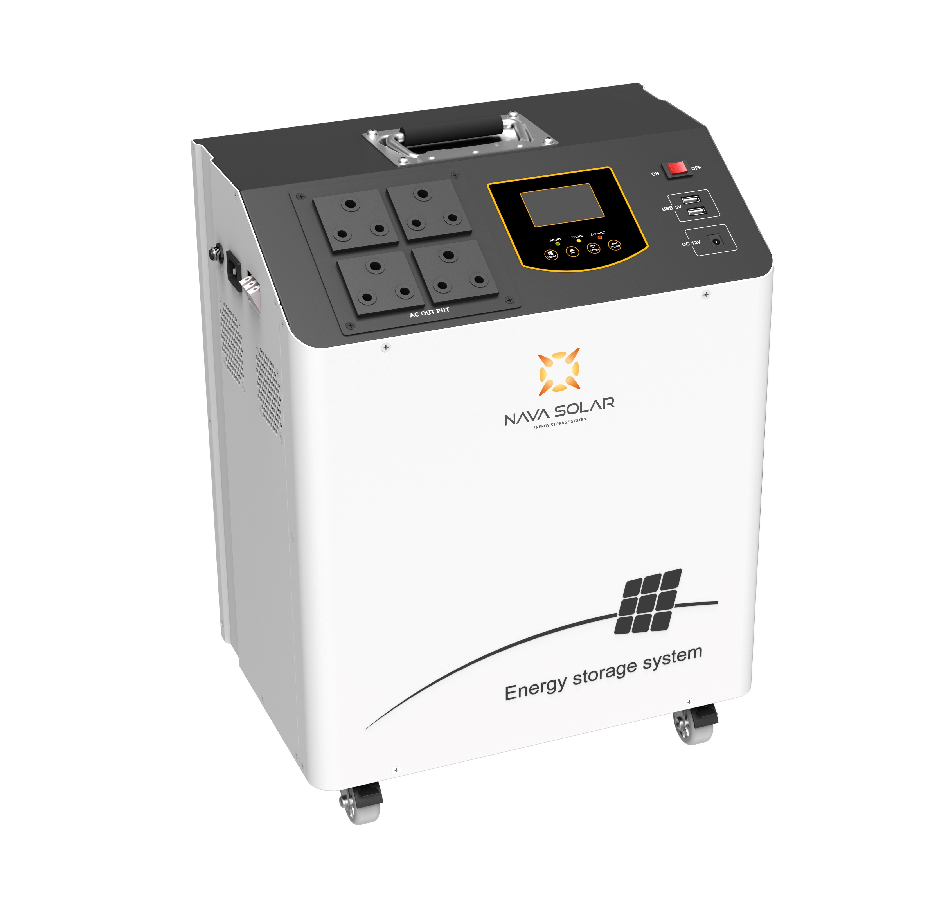

NAVASOLAR BP18-1012 TROLLEY INVERTER - 1KW/12VDC 960WH LIFEPO4 BATTERY

NAVASOLAR BP18-1012 TROLLEY INVERTER - 1KW/12VDC 960WH LIFEPO4 BATTERY

R 13,999.00
R 13,999.00
Sale Sold out
Shipping calculated at checkout.

Item Description:

NavaSolar BP18-1012 Trolley Inverter

BP1800 Series all-in-one energy storage solution, supports 1kW, 2kW, 3kW outputs for different load appliances. It's based on the original cabinet design, stacked with solar energy storage lithium battery 960wh~3072wh, and built-in battery protection system, fully retain the use of load power in applications of residential, school, commercial and public utility area.

FEATURES:

  • Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery capable of charging larger USB devices like laptops.
  • Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40% faster charge times.
  • With LiFePO4 lithium cells, known for stability and safety, monitored by a state-of-the-art battery management system that prevents overcharge, over-current, and short circuiting.
  • Built in Multi safety protection that include short circuit, overload and over-temperature and error code reporting.



SPECIFICATIONS:

INVERTER
Rated Power 1000W
Output voltage waveform Pure sine wave
Output voltage regulation 230Vac ± 230Vac ±5%
Output frequency 50Hz / 60Hz (±0.2Hz)
Peak Efficiency 90%
Nominal DC input voltage 12Vdc (±0.3)
Standby Consumption < 25W

PV INPUT
Max solar power input 900W
PV max charging current 60A (±3A)
Combined charging current 70A (±4A)
PV array open circuit voltage 105VDC
PV Array MPPT Voltage Range 15~105V

AC INPUT
AC input voltage 230Vac ±5%
Acceptable input voltage range 90-280VAC
Nominal input frequency 50Hz / 60Hz (Auto detection)

AC CHARGE
Charging Current @ Nominal Input Voltage 10/20A (±4A)
View full details
