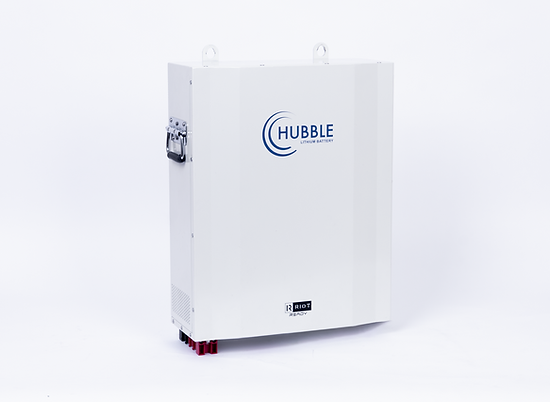

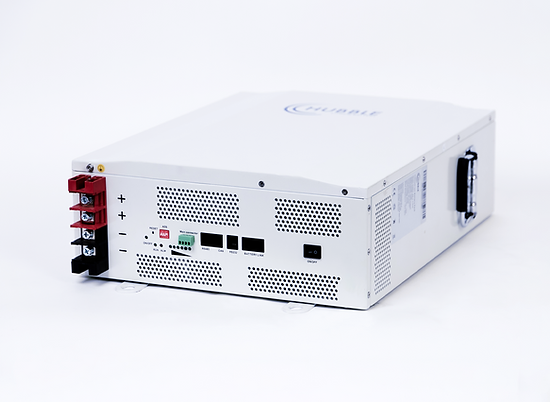

HUBBLE LITHIUM BATTERY 5.5KW 51VDC AM-2

Item Description:

The AM-2 is our 5.5KWh 48V Lithium pack designed to be easily wall mounted or shelf installed in a standard rack.​

Specification: 48V  5.5KWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
​​CAN Bus: Yes
Hubble Cloudlink Ready: Yes

Features:

• Low self discharge

• High cycle and service life

• Easy wall mount or shelf rack installation

• Excellent high temperature performance

• Advanced BMS with current limiting function

• Compatible with most inverters and chargers

• High energy density and conversion efficiency

• Cloudlink integration ready for wifi monitoring

• Complete with integrated Battery Management System

• Heavy duty side handles for easy handling and mounting on the wall

• Built in protection for over-charge, over-discharge & over-temperature

• CAN Bus, fully integrates and communicates with leading Inverter brands

Technical Specifications:

Rated Capacity (5HR): 116Ah

Nominal Voltage: 48V

Design Capacity: 5.5kWh

Equalised Charge Voltage: 53.8V

Max. Continuous Charging Current: 105A

Max. Continuous Discharging Current: 105A

C Rating: 1.0C

Weight: Approx. 42kg

Display: None

Parallel: Parallel connection up to 15 packs with full communications

Dimensions (WxDxH): 375mm x 145mm x 467mm

Ports: 1 x CAN-bus, 2 x Battery Link Ports

Cells: New Li-ion Prismatic Cells

Design Life: ± 15 years

Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD

Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

• Charging: 0°C to 55°C

• Discharging: -20°C to +55°C

• Storage: -20°C to +55°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

Product brochure, manual and warranty available on request, or visit https://www.hubblelithium.co.za/am-4

Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
