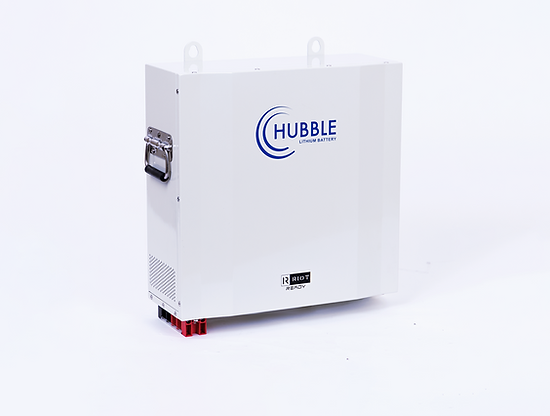

HUBBLE LITHIUM BATTERY 2.75KW 25VDC AM-4

Item Description:

The AM-4 is a 25.5V Lithium battery we are producing to cater for the 24V inverter market. The AM-4 is the perfect fit for 24V inverters where you still have the need to install lithium.

Specification: 25.5V  2.6KWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
​​CAN Bus: Yes
Hubble Cloudlink Ready: Yes

Features:

• Low self discharge

• High cycle and service Life

• 1C High performance lithium battery

• Easy wall mount or shelf rack installation

• Excellent high temperature performance

• Advanced BMS with current limiting function

• Compatible with most inverters and chargers

• High energy density and conversion efficiency

• Complete with integrated Battery Management System

• Hubble Cloudlink integration ready for cloud monitoring

• Heavy duty side handles for easy handling and mounting on the wall

• Built in protection for over-charge, over-discharge & over-temperature

• CAN Bus, fully integrates and communicates with leading Inverter brands

Technical Specifications:

Rated Capacity (5HR): 125 Ah

Nominal Voltage: 25V

Design Capacity: 3.1kWh

Equalized Charge Voltage: 29V

Max. Continuous Charging Current: 115A

Max. Continuous Discharging Current: 100A

C Rating: 1.0C

Weight: Approx. 21kg

Display: None

Parallel: Parallel connection up to 15 packs with full communications

Dimensions: 375mm (w) x 147mm (d) x 371mm (h)

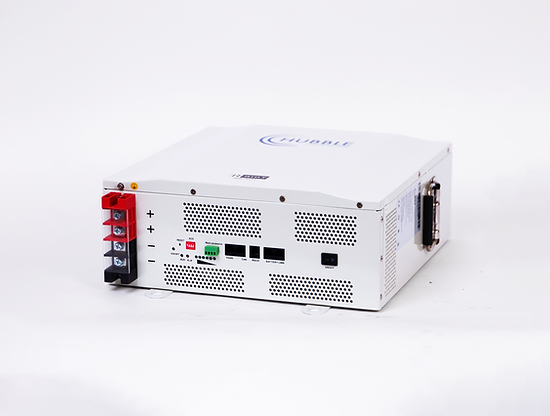

Ports: 1x CAN-bus, X2 Battery Link Ports

Cells: New Li-ion Prismatic Cells

Design Life: ±15 Years

Cycle Life @ 1C: Above 6000 cycles @50% DOD, +/- 3 000 Cycles @ 100% DOD

Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: White bake lacquer steel case

Operating Temperature

• Charging: 0°C to +55°C

• Discharging: -10°C to +55°C

• Storage: -10°C to +55°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

Product brochure, manual and warranty available on request, or visit https://www.hubblelithium.co.za/am-4

Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
