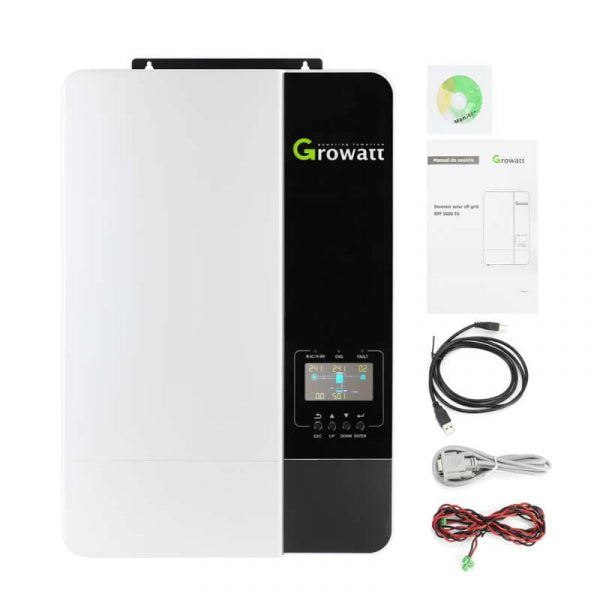

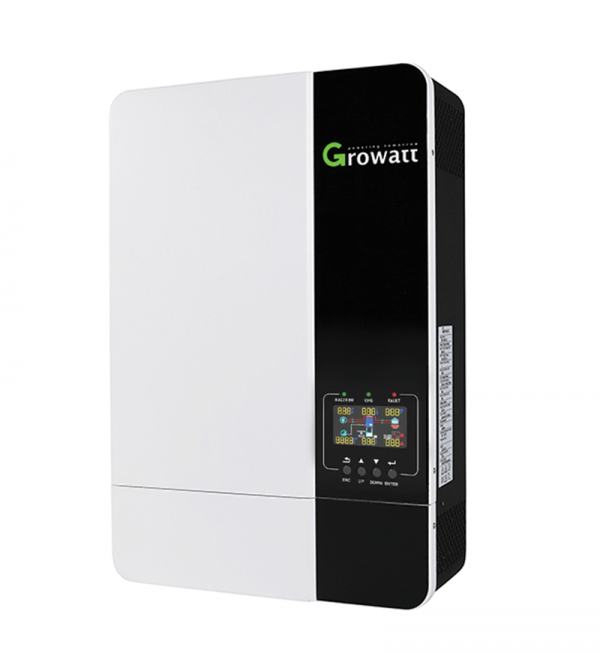

GROWATT SPF 5000 ES OFF GRID, 5KW, 48V

Item Description:

• Integrated MPPT charge controller.
• Equalization charging function.
• Work with or without battery.
• PV input voltage up to 450VDC.
• Configurable grid or solar input priority.
• With WIF/GPRS remote monitoring
• Support parallel operation for capacity expansion up to 30kW.

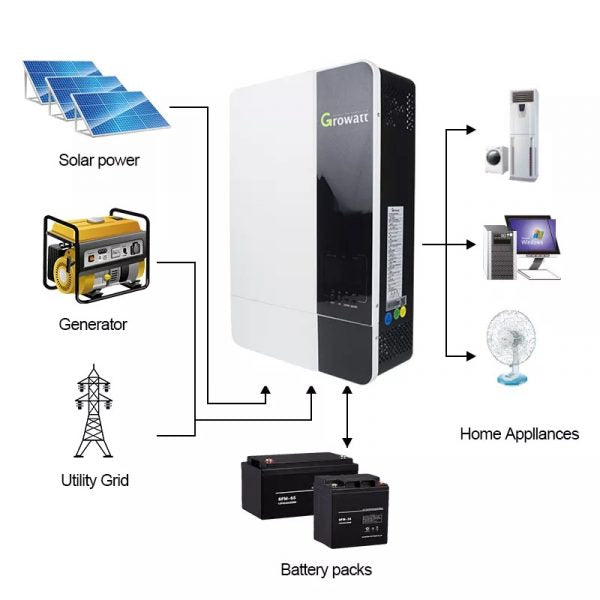

• PV and grid power the load jointly if PV energy is insufficient.
• Flexibly schedule the Inverter charging and discharging time.

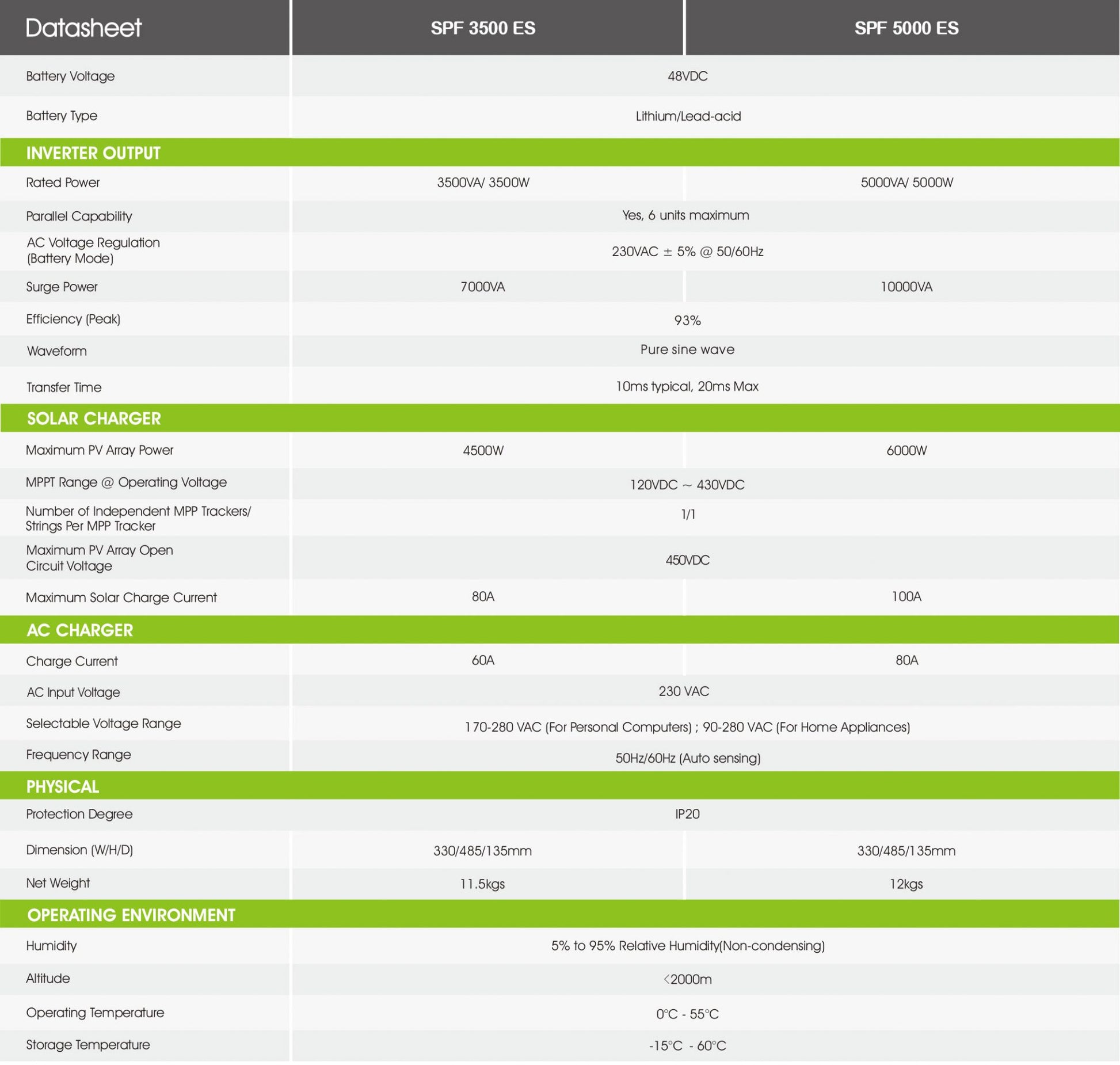

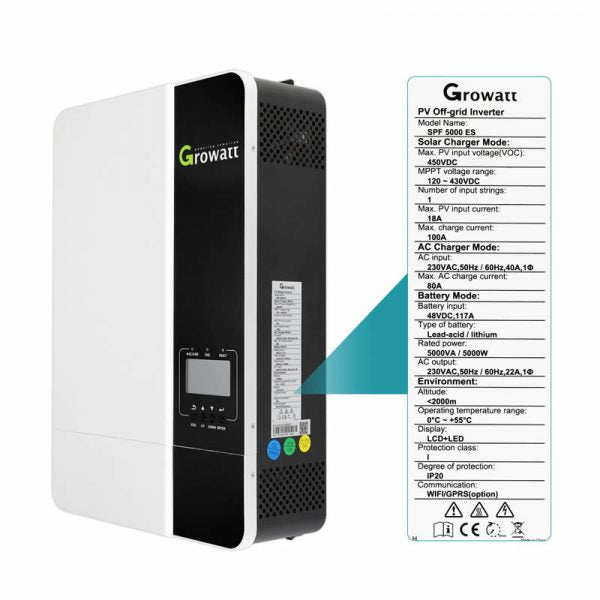

Technical Specifications:

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.
• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms - 20ms.
• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC - 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.
• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).
• Protection degree: IP20.
• Height: 330 x 485 x 135mm.
• Weight: 12 kg.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
