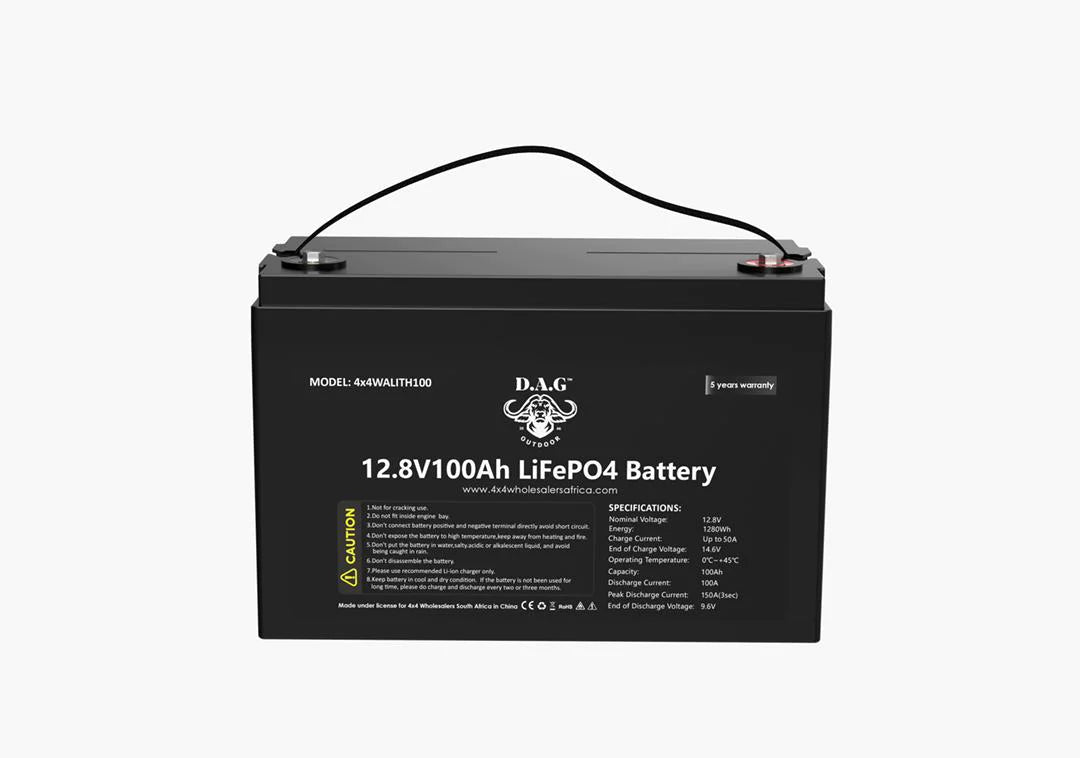

D.A.G 12.8V LITHIUM BATTERY 100Ah

Item Description:

D.A.G 12.8V LITHIUM BATTERY 100Ah

Nominal Voltage 12.8V
Nominal Capacity 100Ah
Stored Energy 1280wh
Self Discharge < 3% per month
Energy Efficiency > 98%
Cycles 3000+

Interior Structure
Configuration 4S2P 4S1P
Cell Assembly High Quality 3.2V LiFePO4 Cell
Cycle Life 6000 times (Cycle @RT, 1C rate,85% DOD)
Built-in BMS Built-in 100A BMS

Charge Specifications
Continuous Charge Current 50A
Maximum Charge Current 100A
Charge Cut-off Voltage 14.6V
Charge Mode CC/CV : Constant Current / Constant Voltage

Discharge Specifications
Continuous Discharge Current 100A
Maximum Discharge Current 150A(5S)
Discharge Cut-off Voltage 9.2V

Temperature Specifications
Charge Temperature 0°C to + 50°C
Discharge Temperature -10°C to + 55°C
Storage Temperature -10°C to + 45°C @60±25% relative humidity

Mechanical Specifications
Terminal Type M8
Case Material ABS Box
IP Rating IP65
Dimensions 329*172*214mm
Weight 11.2Kg
Packing 1 pc in one carton

Warranty: 5 Years ( in order to be covered for this warranty you would need to register your purchase at this link 4X4 Wholesalers Africa)
