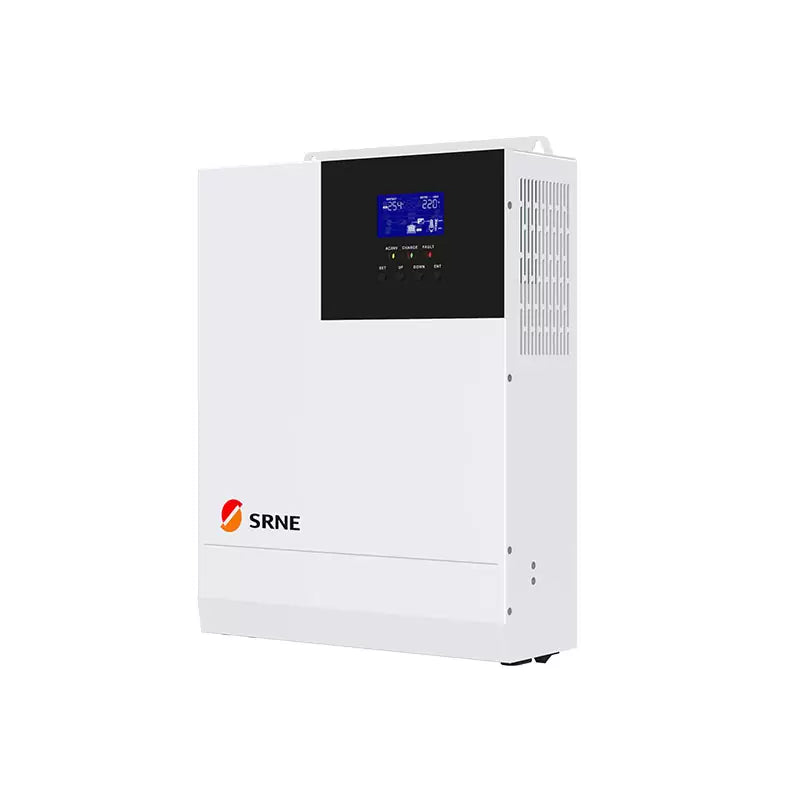

3KW SRNE OFF-GRID SOLAR INVERTER 24V HF2430U60-100

3KW SRNE OFF-GRID SOLAR INVERTER 24V HF2430U60-100

R 8,399.00
R 8,399.00
Sale Sold out
Shipping calculated at checkout.

Item Description:

Max.Voc：100V；Rated input voltage：110/120V

HF Series is new hybrid solar charge inverter, which integrates PV charge &Grid(Generator) charge with AC sine wave output.

Adopting DPS control algorithm, getting higher response speed, higher reliability and higher industrial standard.

Features:
1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

2. Two output modes: mains bypass and inverter output; uninterrupted power supply.

3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

4. Advanced MPPT technology with an efficiency of 99.9%.

5. With the charging requirement (voltage, current, mode) settings, and suitable for various types of energy storage batteries.

6. ON/OFF rocker switch for AC output control.

7. Power saving mode available to reduce no-load loss.

8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.

9. Lithium battery activation design, allowing access of lead-acid battery and lithium battery.

10. 360 ° all-round protection with a number of protection functions. Such as overload, short circuit and over current..

11. Supply of a variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN, USB etc.,and suitable for computer, mobile phones, Internet monitoring as well as remote operations

12. Lithium battey can be activated by both mains and PV.

Technical Specifications:

Models

HF2420U60-100

HF2430U60-100

AC mode



Rated input voltage

110/120Vac

Input voltage range

(90Vac-140Vac)±2%

Frequency

50Hz/ 60Hz (Auto detection)

Frequency Range

47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit protection

Circuit breaker

Efficiency

>95%

Conversion time (bypass and inverter)

10ms (typical)

AC reverse protection

Available

Maximum bypass overload current

40A

Inverter mode



Output voltage waveform

Pure sine wave

Rated output power (VA)

2000

3000

Rated output power (W)

2000

3000

Power factor

1

Rated output voltage (Vac)

120Vac

Output voltage error

±5%

Output frequency range (Hz)

50Hz ± 0.3Hz/60Hz ± 0.3Hz

Efficiency

>92%



Overload protection

(102% < load <110%) ±10%: report error and turn off the output after5 minutes; (110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds; Load >125% ±10%: report error and turn offthe output after 5 seconds;

Peak power

3000

4500

Loaded motor capability

1HP

2HP

Output short circuit protection

Circuit breaker

Bypass breaker specifications

40A

Rated battery input voltage

24V (Minimum starting voltage 22V)

Battery voltage range

20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen)

Power saving mode

AC charging

Load ≤50W

Battery type

Lead acid or lithium battery

Maximum charge current

40A

40A

Charge current error

± 5Adc

Charge voltage range

20.0Vdc~33Vdc

Short circuit protection

Circuit breaker and blown fuse

Circuit breaker specifications

40A

Overcharge protection

Alarm and turn off charging after 1 minute

PV charging



Maximum PV open circuit voltage

100Vdc

PV operating voltage range

30-100Vdc

MPPT voltage range

30-85Vdc

Battery voltage range

20-33Vdc

Maximum output power

1400W

PV charging current range (can be set)

0-60A

Charging short circuit protection

Blown fuse

Wiring protection

Certified specifications

Reverse polarity protection

Certification

CE(EN62109-1)

EMC certification level

EN61000, C2

Operating temperature range

-15°C to 55°C

Storage temperature range

-25°C ~ 60°C

Humidity range

5% to 95% (Conformal coating protection)

Noise

≤60dB

Heat dissipation

Forced air cooling, variable speed of fan

Communication interface

USB/RS485(WiFi/GPRS)/Dry node control

Size (L*W*D)

378mm*280mm*103mm

Weight (kg)

6.8

Important:

All solar products, power systems, water heating and gas products and their components must be installed by qualified personnel. All installations must adhere to local regulations and standards.

OUTDOOR DIY will not be held liable for any product damage or malfunctions as a result of incorrectly installed systems.
